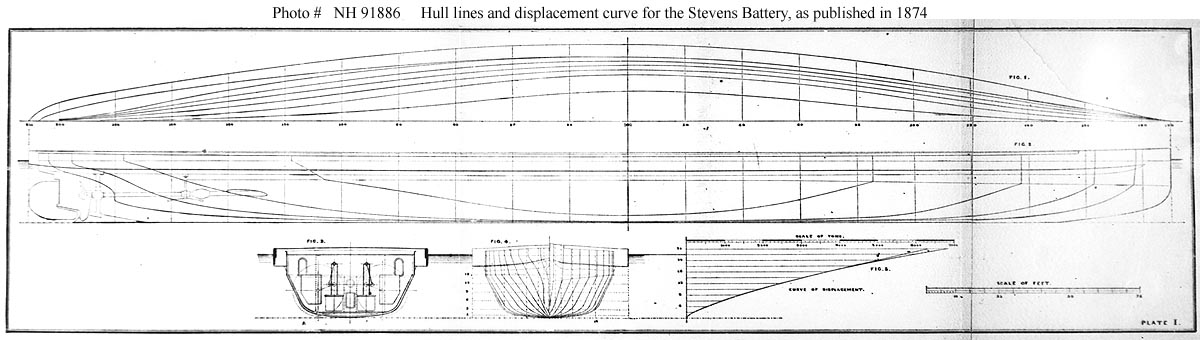

Photo #: NH 91886 The "Stevens Battery" Engraved plan of the ship's hull lines, midships section and curve of displacement, published in the book: "The Stevens Ironclad Battery", in 1874. It represents the ship's ultimate planned configuration, with a monitor-type armored extension around the hull at the waterline. The original volume is held by the Navy Department Library. U.S. Naval Historical Center Photograph. Online Image: 85KB; 1200 x 340 pixels
